HAYWARD

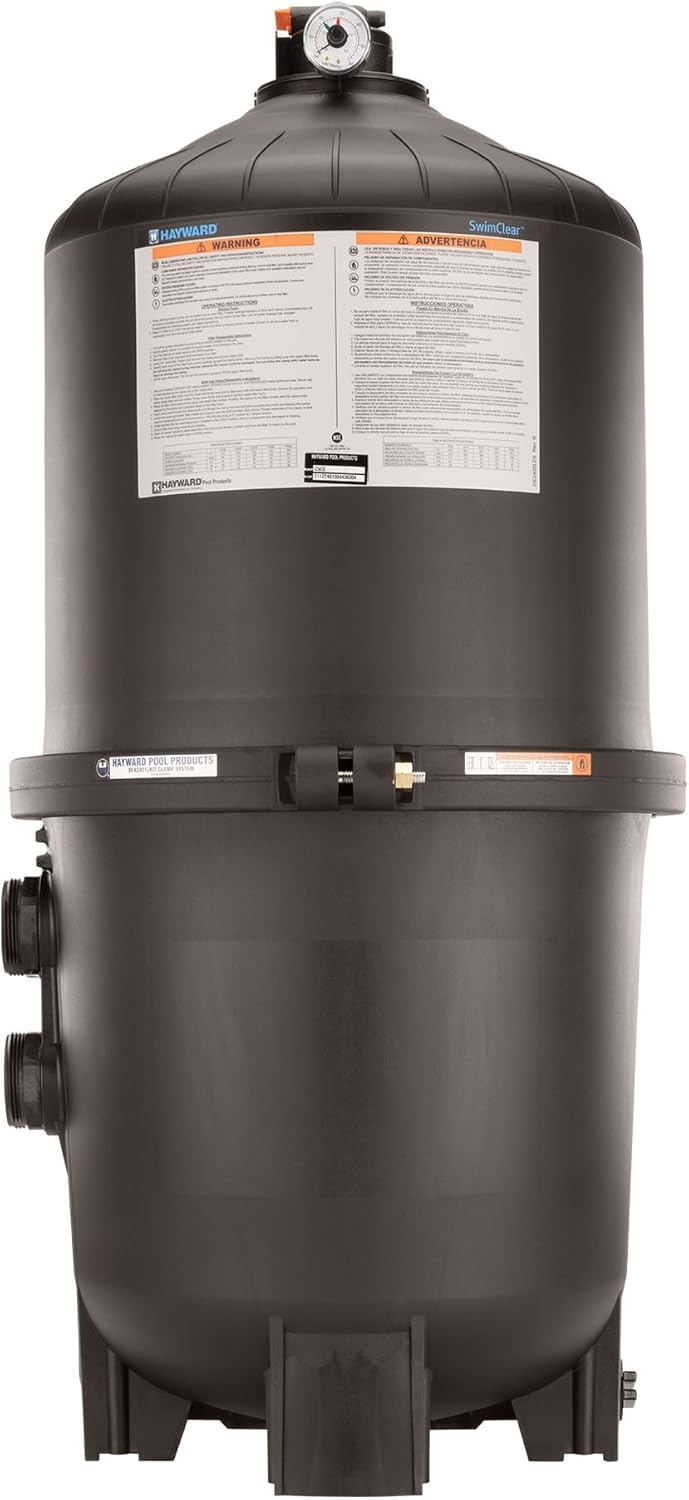

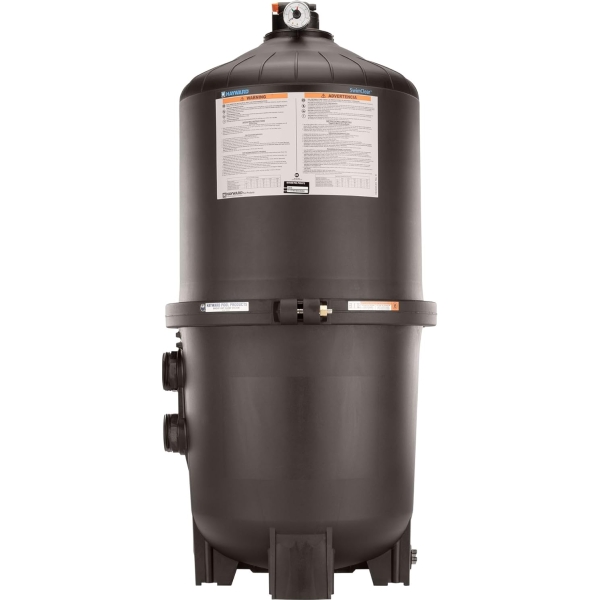

SwimClear™ Cartridge Filter 525 Sq Ft

$2,119.00

SKU: W3C5030

-

1 in stock

Add to Cart
SwimClear™ Cartridge Filter 525 Sq Ft
SwimClear™ Cartridge Filter 525 Sq Ft
$2,119.00
Same Day Dispatch
Most in-stock items are processed and shipped the same day if orders are placed before 12:00 p.m. EST. Visit our Shipping Policy for full details.
No Hassle Returns
Eligible items can be returned within 30 days, no questions asked. Visit our Return Policy for full details.
24/7 Customer Service
Our customer service team is available 24/7 to assist with any inquiries. Visit Customer Help for information, support, and frequently asked questions.
SAFE & SECURE CHECKOUT Payment Methods
Hayward
Pool Filter Size Guide

Choosing the correct pool filter ensures clear water, proper flow, and longer equipment life. An undersized filter will clog quickly and reduce circulation, while an oversized filter improves filtration and reduces maintenance.

Filter Types Explained

Cartridge Filters

  • No backwashing required
  • Excellent filtration (10-20 microns)
  • Lower water usage
  • Cleaned manually

Best for: Most residential pools, water-conscious owners

Sand Filters

  • Easy to operate
  • Backwash to clean
  • Lower filtration (20-40 microns)

Best for: Simplicity, minimal hands-on maintenance

DE (Diatomaceous Earth) Filters

  • Finest filtration (2-5 microns)
  • Backwashing + DE recharge required
  • Highest water clarity

Best for: Maximum water clarity, experienced pool owners

Filter Size by Pool Volume

Rule of thumb: Bigger is always better with filters.

Cartridge Filters (Total Square Footage)

Pool Size (Gallons) Cartridge Filter Size
Up to 15,000 100 – 150 sq. ft.
15,000 – 25,000 150 – 300 sq. ft.
25,000 – 35,000 300 – 500 sq. ft.
35,000+ 500+ sq. ft.

✔ Larger cartridges = longer time between cleanings

Sand Filters

Pool Size (Gallons) Sand Filter Size
Up to 15,000 200 lb
15,000 – 25,000 300 lb
25,000 – 35,000 350 lb
35,000+ 500+ lb

DE Filters

Pool Size (Gallons) DE Filter Size
Up to 15,000 24 sq. ft.
15,000 – 25,000 36 sq. ft.
25,000 – 35,000 48 sq. ft.
35,000+ 60 – 72 sq. ft.

Match the Filter to Your Pump

Your filter must handle the maximum flow rate (GPM) of your pump.

Plumbing Size Typical Max Flow
1 1/2″ PVC ~45 GPM
2″ PVC ~65 GPM
2 1/2″ PVC 80+ GPM

⚠️ Running a pump that exceeds the filter’s flow rating can:

  • Damage internal components
  • Reduce filtration efficiency
  • Void manufacturer warranties

Why Oversizing a Filter Is Good

✔ Cleaner water
✔ Lower pressure
✔ Longer time between cleanings/backwashing
✔ Longer filter life
✔ Better compatibility with variable-speed pumps

A larger filter paired with a lower pump speed is the most efficient setup.

Special System Considerations

You may need a larger filter if your pool has:

  • Variable-speed pump running long hours
  • In-floor cleaning system
  • Heavy debris (trees, leaves)
  • Spa spillover
  • High swimmer load

Common Filter Sizing Mistakes

❌ Matching filter size to pump HP only
❌ Choosing the minimum recommended size
❌ Ignoring maximum flow rating
❌ Underestimating debris load

✅ Always size for flow rate and pool volume

Replacing an Existing Filter?

Check the filter label for:

  • Filter type
  • Square footage (cartridge / DE)
  • Tank diameter (sand)
  • Maximum flow rate (GPM)

If you’re unsure, contact us and we’ll help you choose the correct filter.

Utilizing a cluster of reusable cartridge elements, SwimClear filters offer a choice of 225, 325, 425, 525, or 725 square feet of heavy-duty dirt-holding capacity for extra-long filter cycles, up to an entire season without cleaning. SwimClear filters will provide years of trouble-free operation and crystal clear, sparkling water

Features and Benefits

  • High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever
  • Filter tanks made from durable glass reinforced co-polymer to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems
  • Self-aligned tank top and bottom make access to serving the Quad-Cluster™ cartridge elements fast and simple
  • Heavy-duty, tamper-proof, one-piece clamp securely fastens tank top and bottom. Allows quick access to all internal components without disturbing piping or connections
  • Top manifold configuration provides excellent filtration and hydraulic performance
  • Non-corrosive top closure plate prevents elements from lifting and allowing unfiltered water to by-pass into pool or spa during operation
  • Quad-Cluster of high-quality polyester cartridge elements provide 225, 325, 425, 525, or 725 square feet of filter area for extra dirt-holding capacity and long filter cycles
  • 2″ full-flow internal piping and plumbing for less resistance to flow and maximum performance
  • PVC union coupling connection accepts 2″ or 2 1/2″ piping for plumbing versatility and hydraulic efficiency
  • Full size 1 1/2″ integral drain allows for quicker and easier flushing of tank

Additional information

Weight 92.00 lbs
Dimensions 23.10 × 24.60 × 41.80 in
Filter Area

Port Size

Max Water Flow
