Service Vacuum, 30″ Head, 60′ Cord

SERVICE UNITS – FOR POOL ROUTE TECHNICIANS

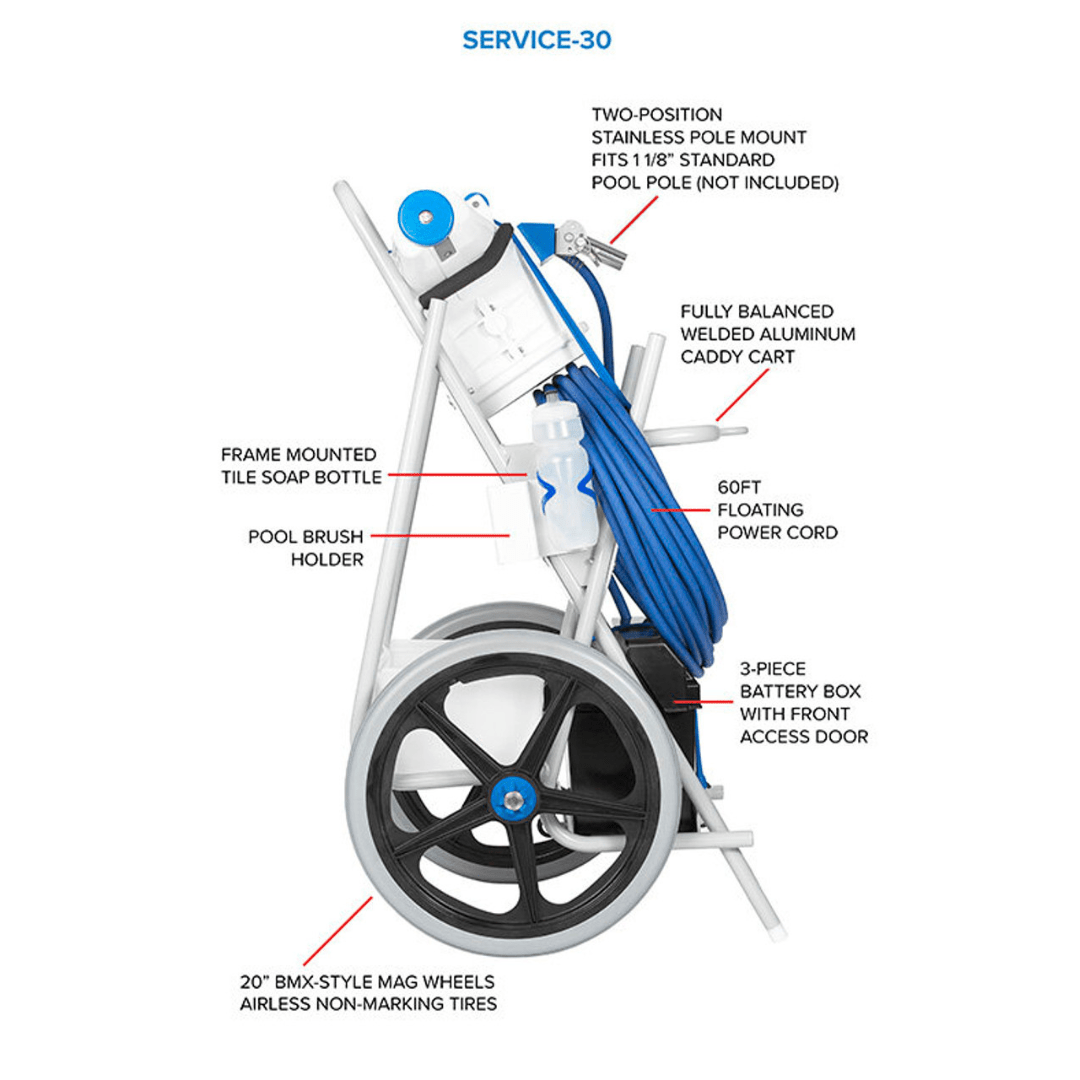

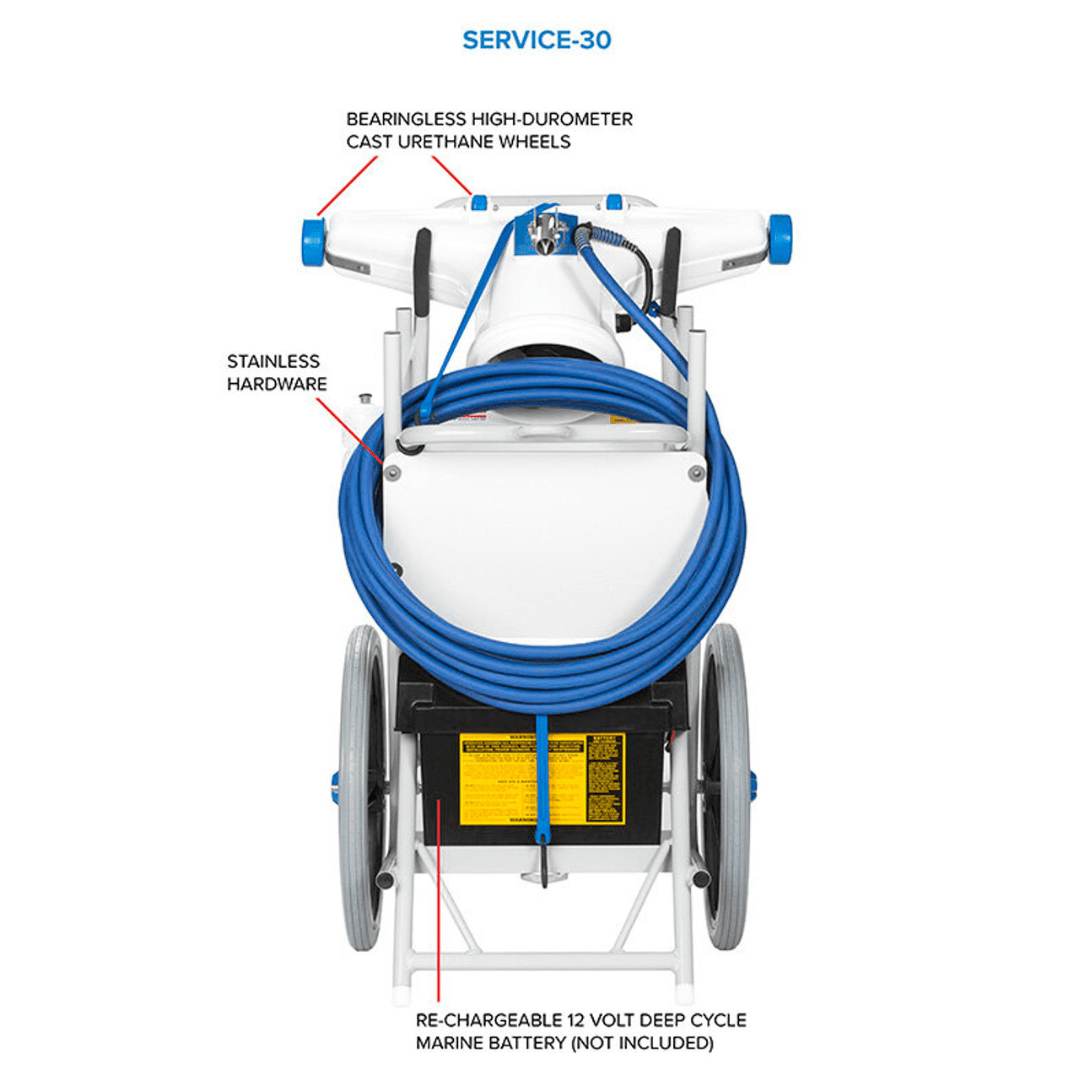

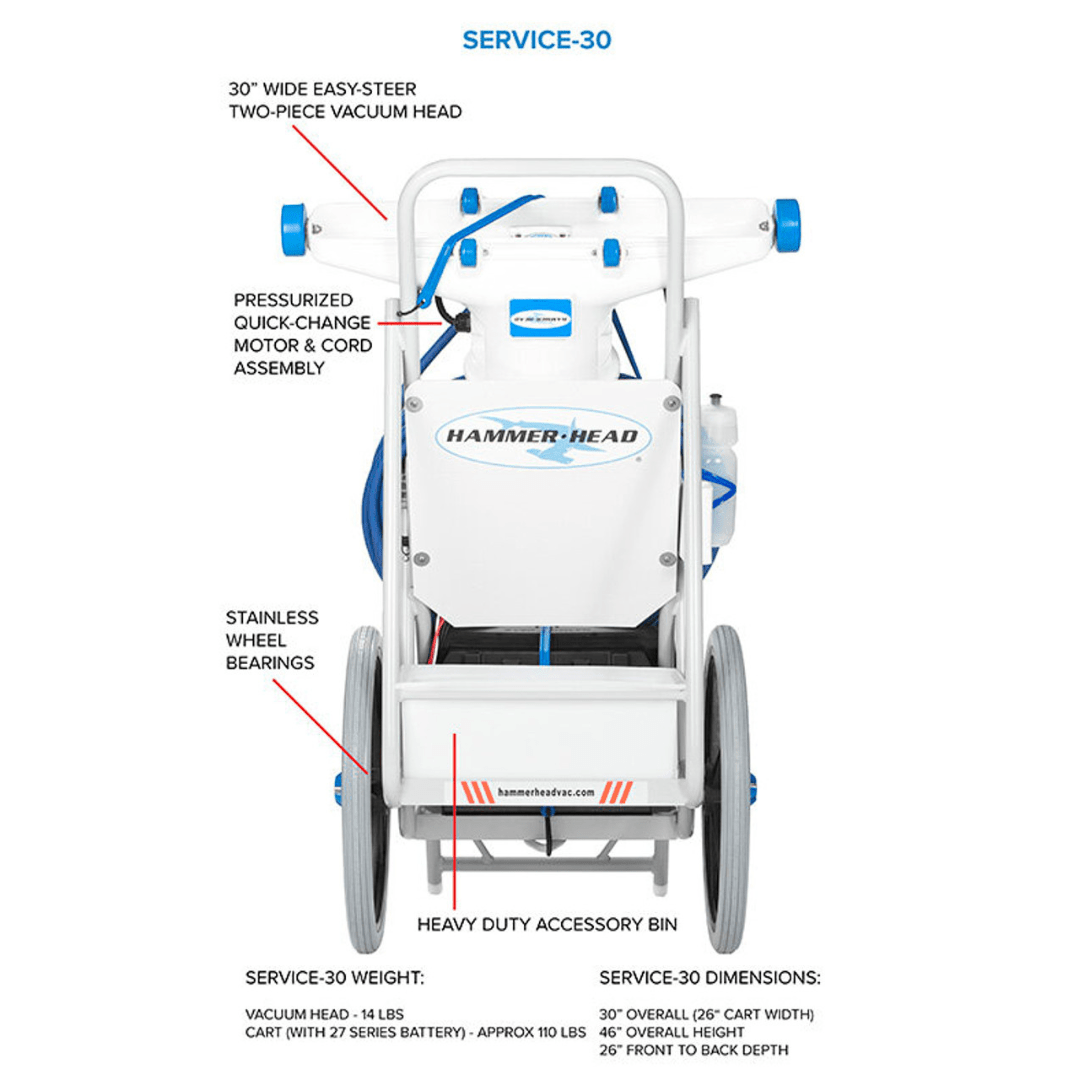

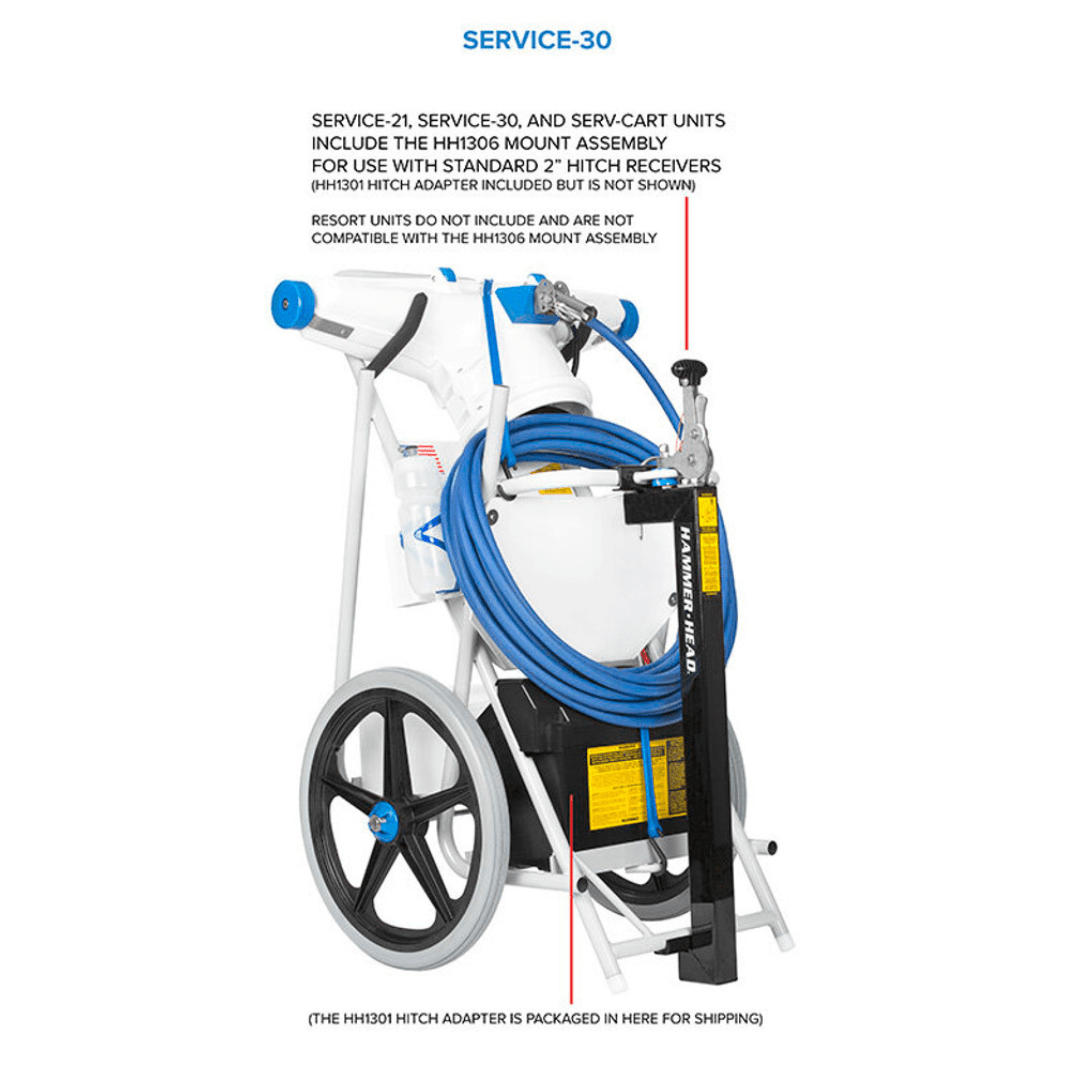

Service-21 and Service-30 units are meant for pool-to-pool route work, and include a mount assembly for transport. Mount assemblies (HH1306) are compatible with any 2″ hitch receiver (vehicle hitch not included). The two standard units are the Service-21, which has a 21″ vacuum head and a 40ft power cord, and the Service-30, which has a 30″ vacuum head and a 60ft power cord. Service-21 units are also available with a 60ft power cord as an option. (See Optional Configurations below). Service units ship partially assembled. Some assembly and set-up of the vehicle mount is required. (Due to ongoing improvements, products may be slightly different than pictured).

NOT INCLUDED:

• 12 VOLT DEEP CYCLE MARINE BATTERY
• BATTERY CHARGER
• STANDARD POOL POLE

SPECIFICATIONS:

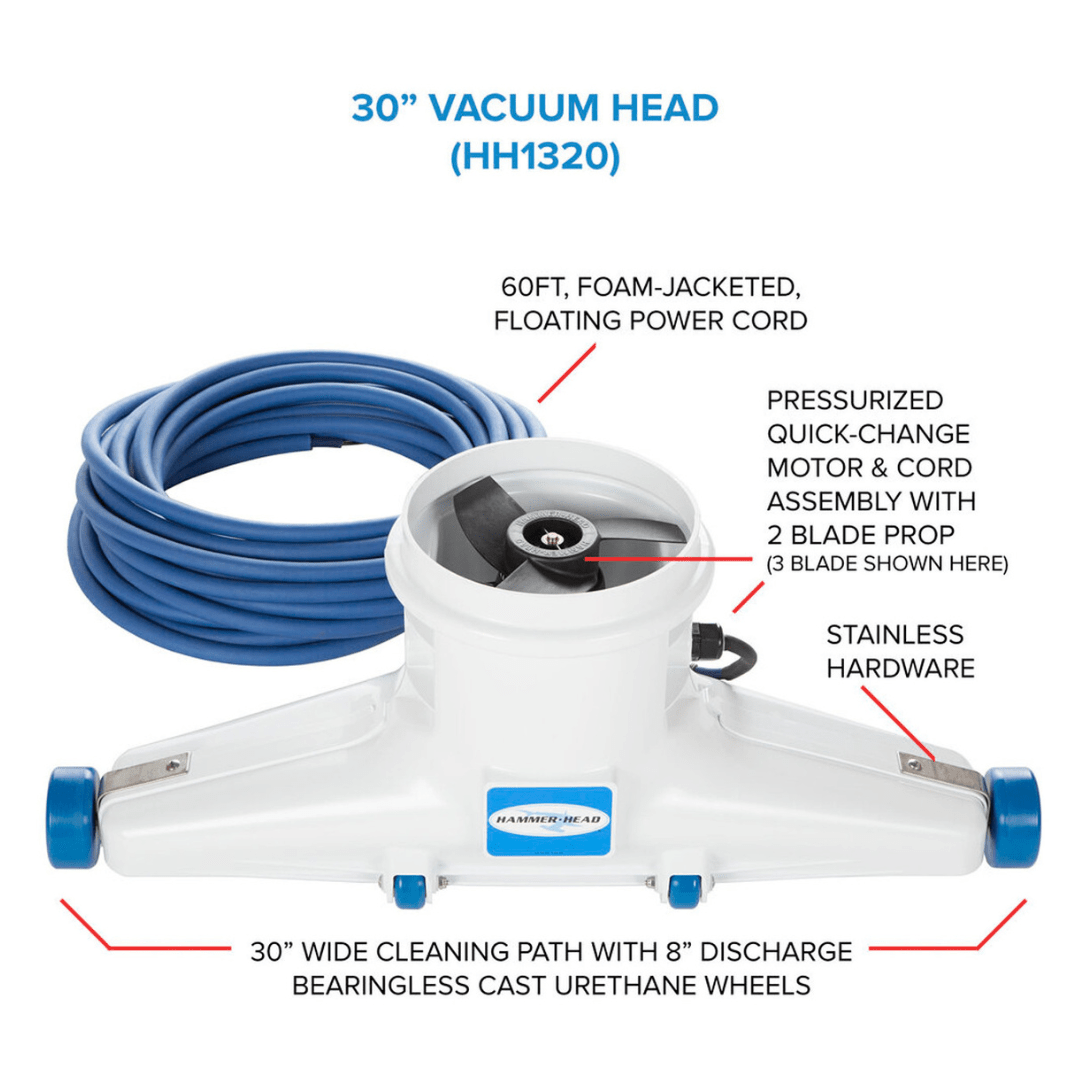

• 21″ OR 30″ INJECTION MOLDED VACUUM HEAD
• NON-MARKING, BEARINGLESS, CAST URETHANE HEAD WHEELS
• STAINLESS POLE SWIVEL MOUNT (two position adjustable angle standard on the Service-30)
• ALL STAINLESS HARDWARE

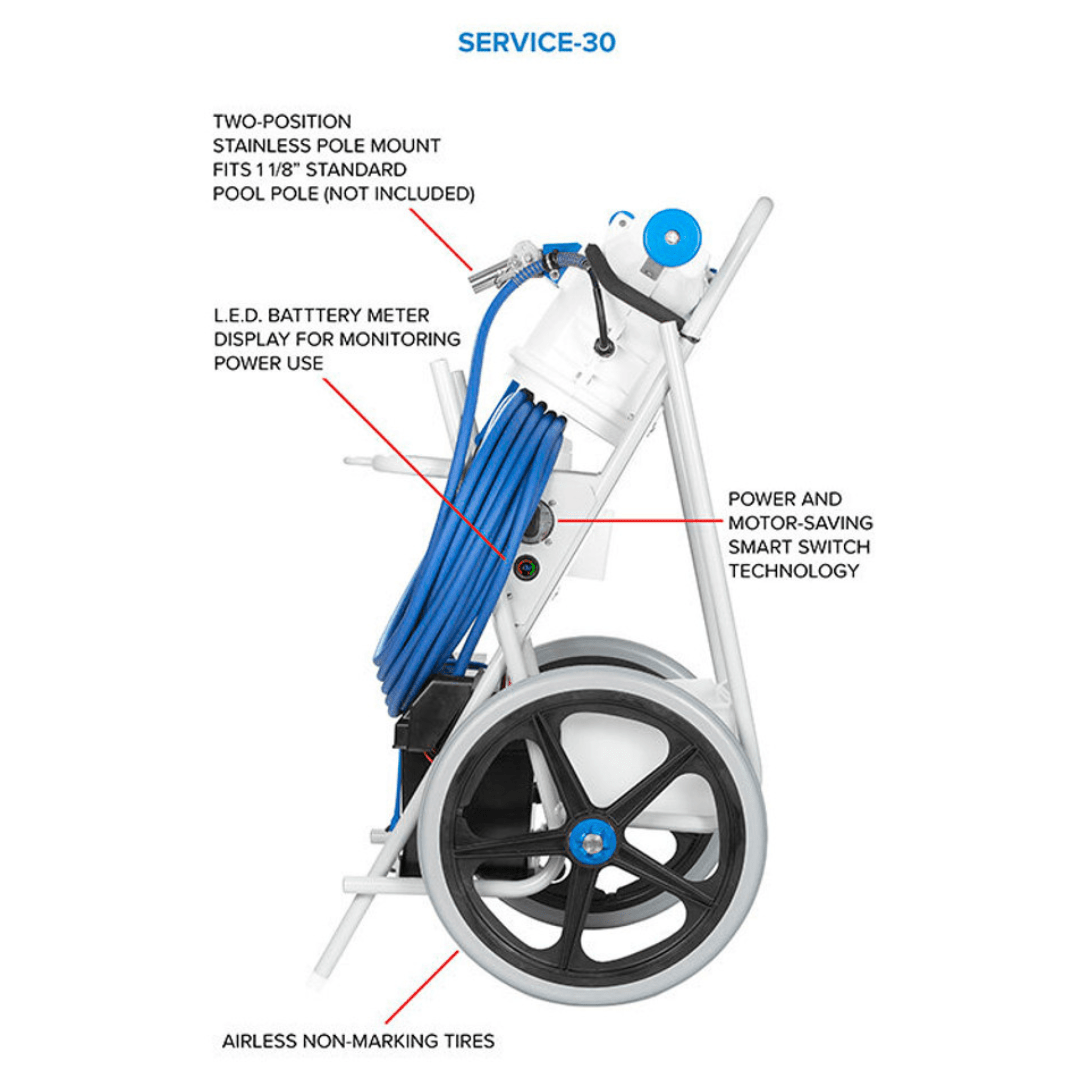

• FEATURING THE PATENTED SMART SWITCH™ (The new HH1062 Smart Switch comes standard on all Hammer-Head pool cleaning units. SMART SWITCH™ features include a motor-saving overload sensor, two speeds, and an automatic shutoff when the motor is out of the water for more than a minute).
• L.E.D. battery voltage meter
• SEALED AND PRESSURE TESTED MOTOR
• 40FT OR 60FT FLOATING POWER CORD
• TWO BLADE PROPELLER
• WELDED ALUMINUM CADDY CART
• 20″ MAG BMX-STYLE CART WHEELS
• NON-MARKING SOLID TIRES
• STAINLESS WHEEL BEARINGS

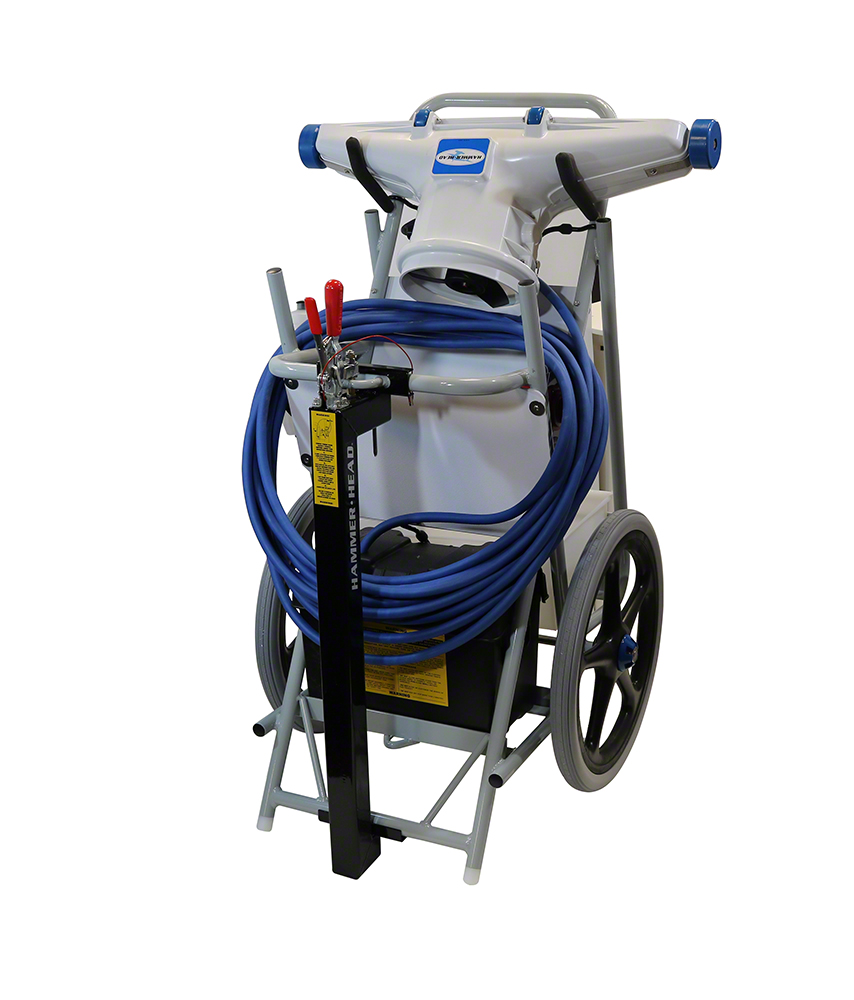

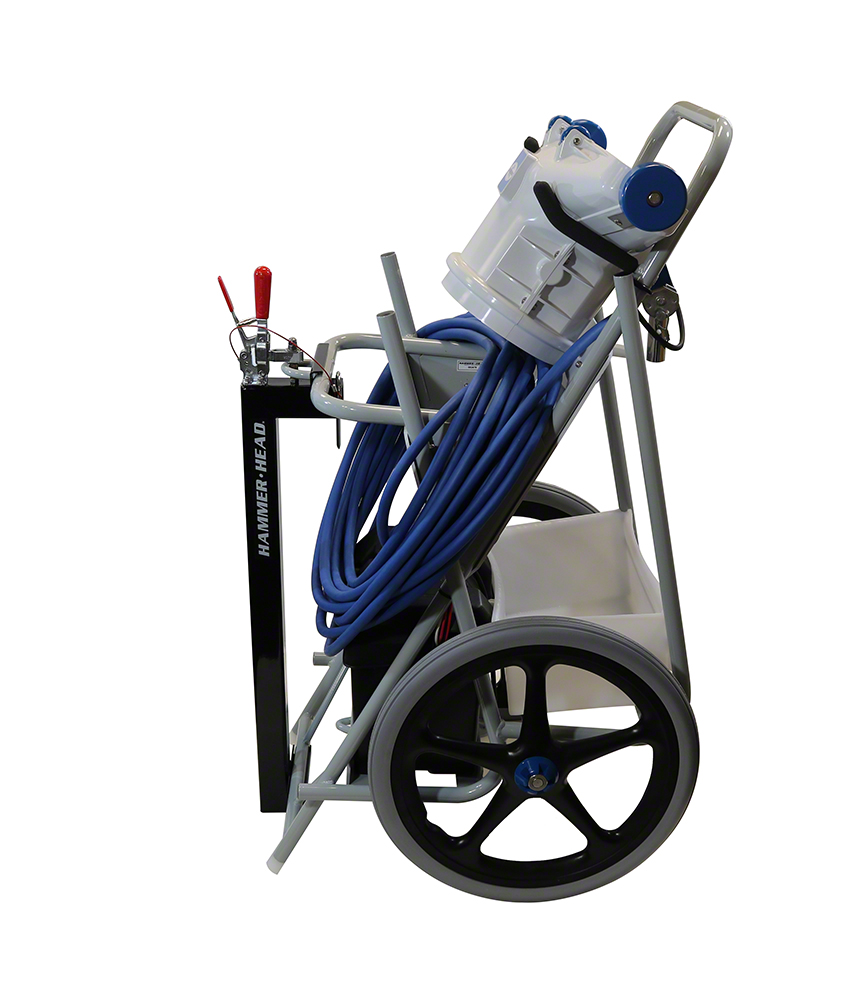

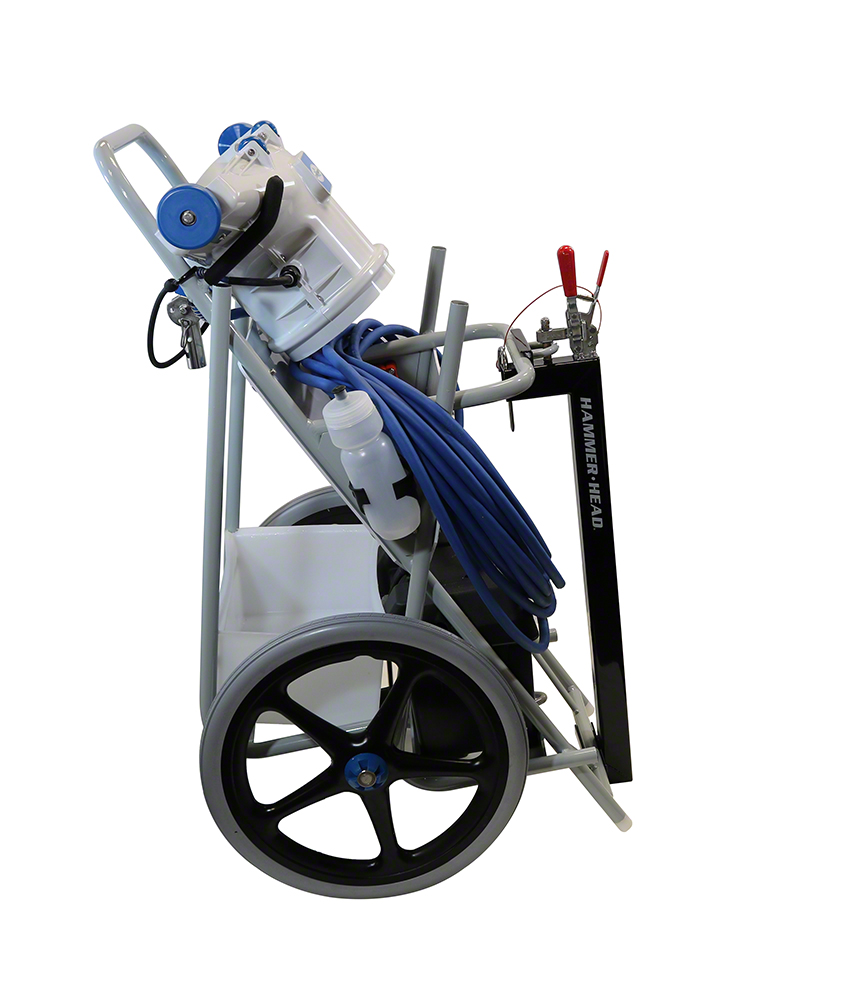

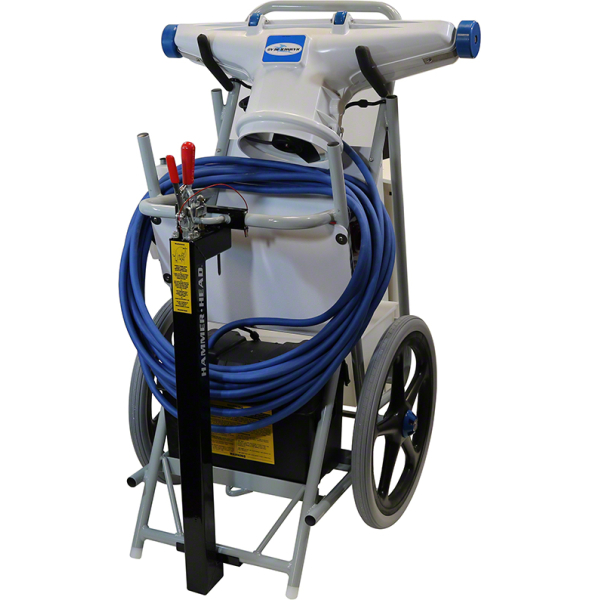

• VEHICLE MOUNT ASSEMBLY (HH1306) **Your vehicle must be equipped with a standard 2” hitch receiver.
• TWO DEBRIS BAGS (HH1506 AND HH1508)
• SERVICE-21 WEIGHT WITH 27 SERIES MARINE BATTERY: 155 LBS
• (approximate)
• SERVICE-30 WEIGHT WITH 27 SERIES MARINE BATTERY: 157 LBS
• (approximate)
• 21″ VACUUM HEAD & MOTOR WEIGHT: 11 LBS
• 30″ VACUUM HEAD & MOTOR WEIGHT: 13 LBS

OPTIONAL CONFIGURATIONS:

• SERVICE-21-60 (with 60ft power cord)
• SERVICE-21-NM (without the vehicle mount assembly)
• SERVICE-30-NM (without the vehicle mount assembly)
• SERV-CART (complete cart assembly only)
• SERV-CART-NM (complete cart assembly without the vehicle mount)
• HH1070 CART FRAME ONLY

SHIPPING DIMENSIONS:

• PALLETIZED DIMENSIONS: 30 X 34 X 52 HIGH (one unit per pallet)
• SHIPPING WEIGHT: 110lbs
• FREIGHT CLASS: 250
