SPECK

BADU® Pro-V UVS Pool Pump 2.7 HP

$1,334.40

SKU: IG385-V270T-TUS

-

6 in stock

Add to Cart
BADU® Pro-V UVS Pool Pump 2.7 HP
BADU® Pro-V UVS Pool Pump 2.7 HP
$1,334.40
Same Day Dispatch
Most in-stock items are processed and shipped the same day if orders are placed before 12:00 p.m. EST. Visit our Shipping Policy for full details.
No Hassle Returns
Eligible items can be returned within 30 days, no questions asked. Visit our Return Policy for full details.
24/7 Customer Service
Our customer service team is available 24/7 to assist with any inquiries. Visit Customer Help for information, support, and frequently asked questions.
SAFE & SECURE CHECKOUT Payment Methods
Speck
Pool Pump Size Guide

Choosing the correct pool pump depends on pool size, plumbing size, and system features (heater, spa, water features, etc.). Bigger is not always better – an oversized pump wastes energy and can damage equipment.

Determine Your Pool Size

Rectangular Pool
Length × Width × Average Depth × 7.5 = Gallons

Round Pool
Diameter × Diameter × Average Depth × 5.9 = Gallons

Recommended Pump Size by Pool Volume

Pool Size (Gallons) Typical Pump Size
Up to 10,000 3/4 HP – 1 HP
10,000 – 20,000 1 HP – 1 1/2 HP
20,000 – 30,000 1 1/2 HP – 2 HP
30,000 – 40,000 2 HP – 2 1/2 HP
40,000+ 2 1/2 HP – 3 HP

⚠️ Note: Modern variable-speed pumps often replace larger single-speed pumps at lower HP ratings due to higher efficiency.

Plumbing Size Matters (Very Important)

Pipe Size Recommended Max
1 1/2″ PVC Up to 1 1/2 HP
2″ PVC Up to 3 HP
2 1/2 – 3″ PVC 3HP +

Oversizing a pump on small plumbing can cause:

  • Excessive noise
  • Poor filtration
  • Heater & filter damage

Pump Type Comparison

Single-Speed Pumps

  • Lower upfront cost
  • Higher electricity usage
  • Becoming obsolete in many states

Best for: Basic systems, budget replacements

Dual-Speed Pumps

  • High & low speed operation
  • Lower energy cost than single-speed

Best for: Simple upgrades where VS is not required

Variable-Speed Pumps (Recommended)

  • Most energy efficient
  • Quiet operation
  • Programmable speeds
  • Often utility rebate eligible

Best for: Nearly all residential pools

???? A 1.65–2.7 THP variable-speed pump can replace most 1 1/2 – 3 HP single-speed pumps.

Systems That Require a Larger Pump

You may need a larger pump if your pool has:

  • Spa spillover
  • Waterfalls or deck jets
  • Solar heating
  • In-floor cleaning system
  • Long plumbing runs

Common Sizing Mistakes

❌ Choosing HP only (ignore flow & plumbing)
❌ Oversizing “just to be safe”
❌ Ignoring filter and heater flow limits

✅ Always size for flow rate (GPM), not just horsepower.

Still Not Sure?

If you’re replacing an existing pump, check the motor label for:

  • HP
  • THP (Total Horsepower)
  • Voltage
  • Plumbing size

If you’re unsure, contact us and we’ll help you choose the correct pump.

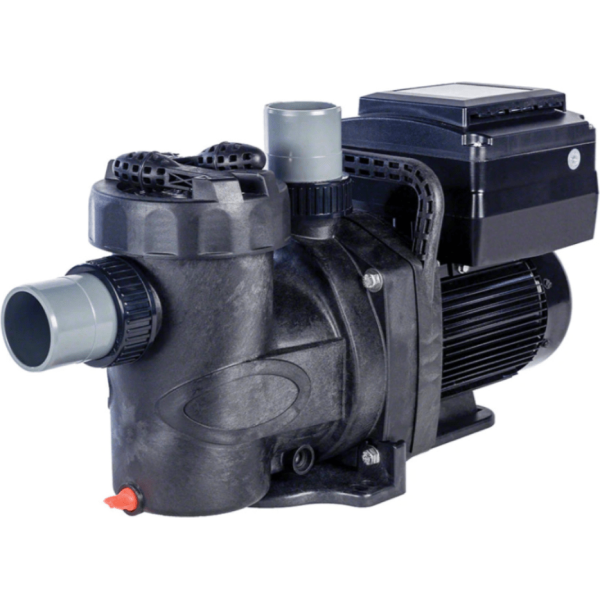

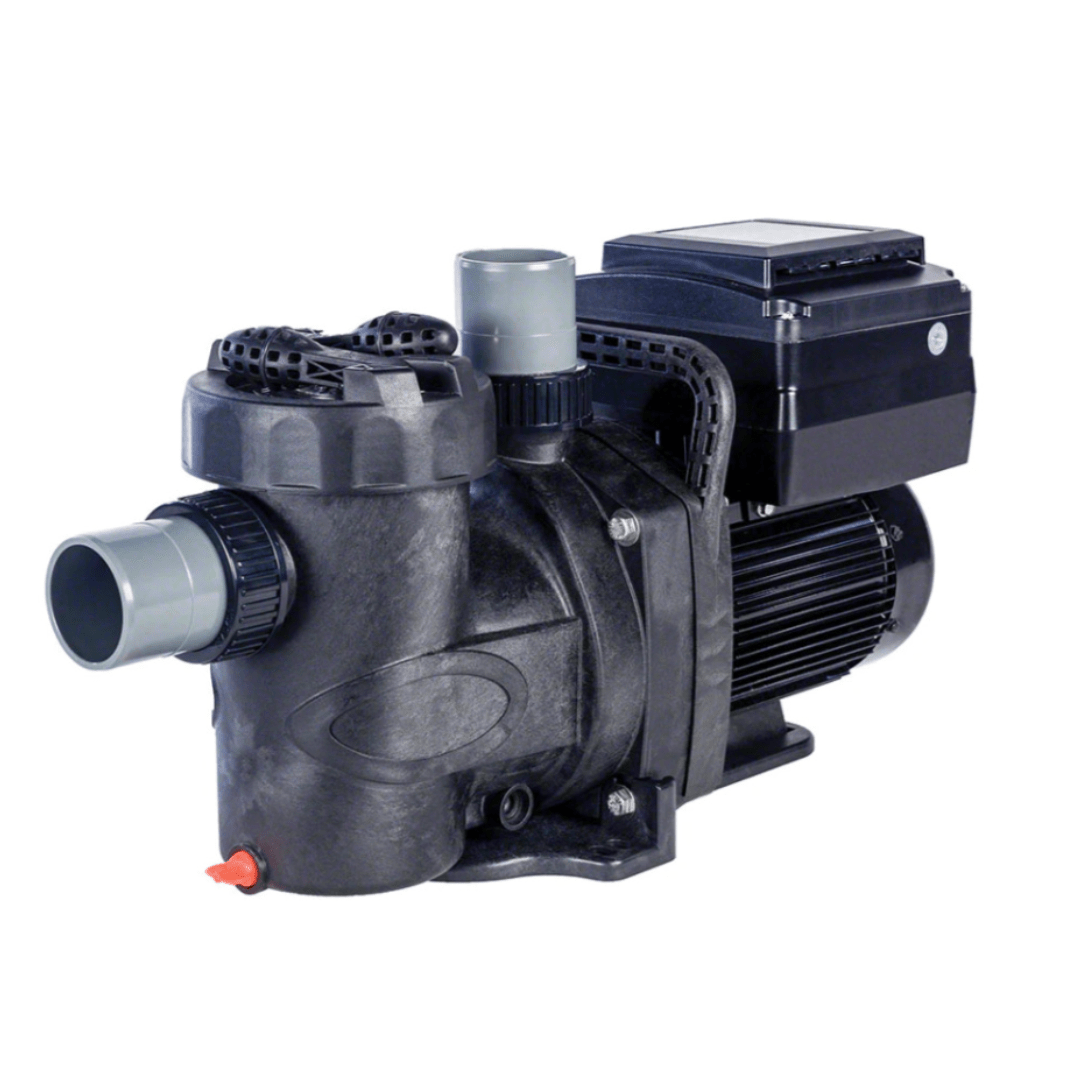

Our flagship pump, the BADU® Pro was designed with pool service pros in mind. A drop-in replacement for both the Hayward® Super Pump® and Pentair® SuperFlo®, WhisperFlo®, it not only replaces the majority of pumps on the market, but also communicates with their automation.

Features:

  • This BADU Pro Series has a 4-bolt casing design with handle making this pump easy to service.
  • The BADU Pro is available with the following 56 frame motor options:
    • Single Speed (0.98 & 1.13 THP)
    • Variable Speed (1.65, 2.25, 2.7 & 3.45 THP)
  • This BADU Pro Series comes with our unique mechanical shaft seal that allows the pump, if mistreated, to run dry for up to one hour.
  • Suction and discharge are equipped with quick disconnect unions for easy installation and maintenance. (Models are available in 1.5″ or 2″ casings.)
  • Lock ring that incorporates handles. These handles provide the user with a convenient way to easily remove the lid.
  • Motor is easy to remove without disturbing the plumbing. Reusable o-rings throughout.
  • Pump includes riser allows for direct replacement of WhisperFlo® and IntelliFlo® models.
  • Every pump is wet tested before leaving the Speck factory.

Features Specific to the Variable Speed Models:

  • All variable speed models are equipped with an LED light in the basket lid, for ease of maintenance.
  • The BADU Pro is available with the following variable speed motor options:
    • 1.65 THP
    • 2.25 THP
    • 2.7 THP
    • 3.45 THP
  • Programmable with a high efficiency TEFC (totally enclosed fan cooled) maintenance-free permanent magnet brushless 56 frame with class F insulation.
  • The 1.65 variable speed, as well as all single speed models, are dual voltage, whereas the 2.25, 2.7 and 3.45 variable speeds run on 230 volts.
  • The 1.65, 2.25, 2.7, and 3.45 THP variable speeds also come with discrete switch inputs, for easy connection to automation.
  • The 1.65, 2.25, 2.7, and 3.45 models are additionally available with our Universal Automation Control Board, allowing for seamless communication with all major equipment manufacturers.
  • Optional Communication Cable available for use with universal automation control boards (part# 7155001113A).

Additional information

Weight 55.00 lbs
Dimensions 30.00 × 13.25 × 14.50 in
Port Size

Horsepower

Voltage
